FNIRSI DWS-200 C210 200W Rapid Heating Soldering Iron Station

Sale!

FNIRSI DWS-200 C210 200W Rapid Heating Soldering Iron Station

Original price was: £89.99.Current price is: £79.99.

In stock

SKU: TC222061 Category: Tags: ,

Description

FNIRSI DWS-200 200W Rapid Heating Soldering Iron Station

The Fnirsi DWS-200 is 200W soldering station with a C210 soldering handle and 3 tips. The stations feature three temperature pre-sets to switch between setups quickly. A dynamic temperature curve mode is also included, to monitor the temperature trends on the TFT display accurately.

As soon as the soldering iron is placed in the stand, it switches to standby, which drops the temperature. This pro-longs the life of the soldering tips up to 5x its regular lifespan. Also automatically a countdown clock will be displayed with the remaining time until the sleep mode is activated, which will turn off the power completely. The rapid high-power heating ensures the soldering iron will be back up to its set temperature in a few seconds when it is picked up again.

Features

Power 200 W
Temperature range
100 °C – 450 °C
Heating time
~ 3 sec
Automatic standby
Yes, when placed in holder
Dimensions 156 x 96 x 103 mm (station)
Weight 0.475 kg (station)

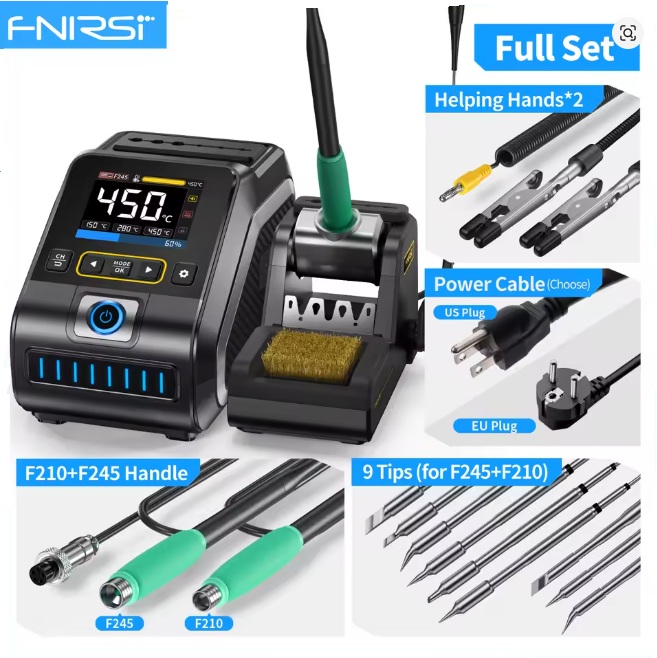

Whats Included

1x Solder Station
1x Solder Handle C210
1x Solder Stand
1x Power Cable
1x Connecting Cable
3x Soldering Tips
2x Helping Hands



Additional information

Weight 0.9 kg
Dimensions 20 × 20 × 30 cm

Brand

FNIRSI

FNIRSI-logo

Firmware

Firmware

TestClips firmware page. Firmware/Software for our products can be found on this page. All software is from the manufacture and has been tested for each product.

AIXUN Product Software

AIXUN Update Software

Login details for update tool are below
Username: support@testclips.co.uk
password: Testclips1


PINE64 Pinecil Updater

PINEFLASH – Used to flash pinecil to latest version

Web Interface for the pinecil (once flashed to 2.22)

Pinecil V2 Bluetooth Client (joric.github.io)


FNIRSI Products

Firmware DWS-200

DWS-200

DPS-150 Power Supply

Software to control DPS-150

Firmware 1.6 HS-02b

  1. Insert USB cable and hold OK (Data cable)
  2. Select System Set > OK
  3. Scroll to firmware update > OK
  4. Select ok > OK
  5. Extract the bin file from the below download and copy it to the  bootloader folder

HS-02B_V1.6

LCR-P1 Transistor Tester

LCR-P1 Firmware
