Description

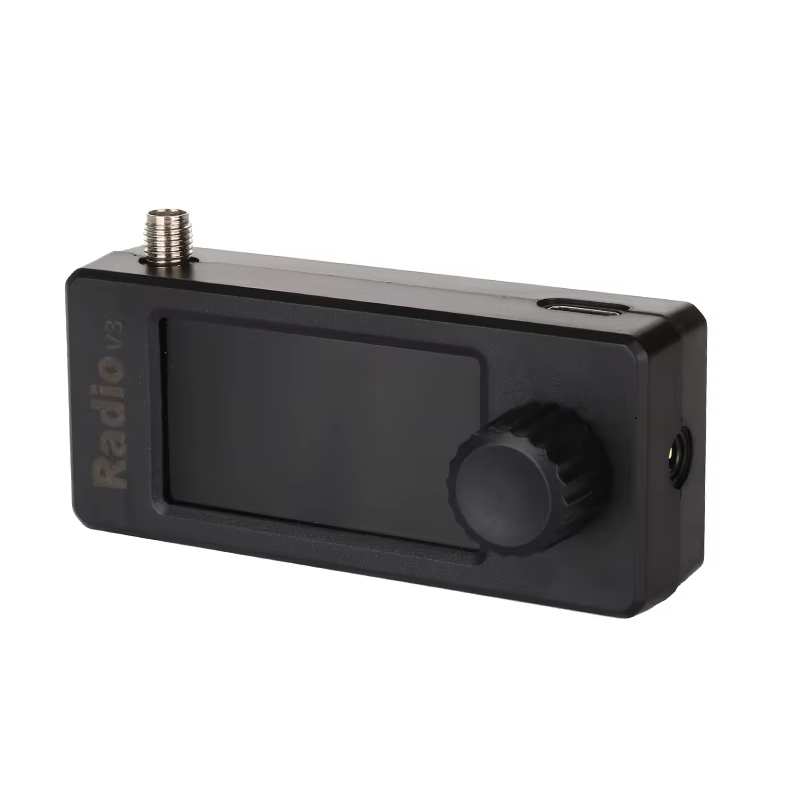

The **ESP32-S3 SI4732 Pocket Multiband Receiver** is a compact, feature-rich radio receiver project that utilizes the **Lilygo T-Display S3** development board. This device is powered by an ESP32-S3 microcontroller and integrates a **1.9-inch ST7789 IPS display**, making it a versatile platform for radio enthusiasts. The project is based on an open-source sketch developed by Ralph Xavier, which transforms the hardware into a fully functional multiband radio capable of receiving **LW (longwave), MW (medium wave), SW (shortwave)** in both **AM and SSB (single sideband)** modes, as well as commercial FM stations.
Specifications
- Built-in Hi-Z circuit, enhance weak signal resolution
- With earphone amplifier, better headphone performance
- New firmware v2.28 and you can update in the future
- Mute headphones when switching frequency bands
- ABS case
- No battery drain issue
- Using ESP32-S3 main control
- 1.9inch IPS HD color screen
- Using SI4732 DSP chip
- support broadcasting full band, LSB/USB/AM/FM mode
- Receiving frequency band: HF SW MW VHF
- Built-in 800 mAh battery, battery life of about 10 hours or more

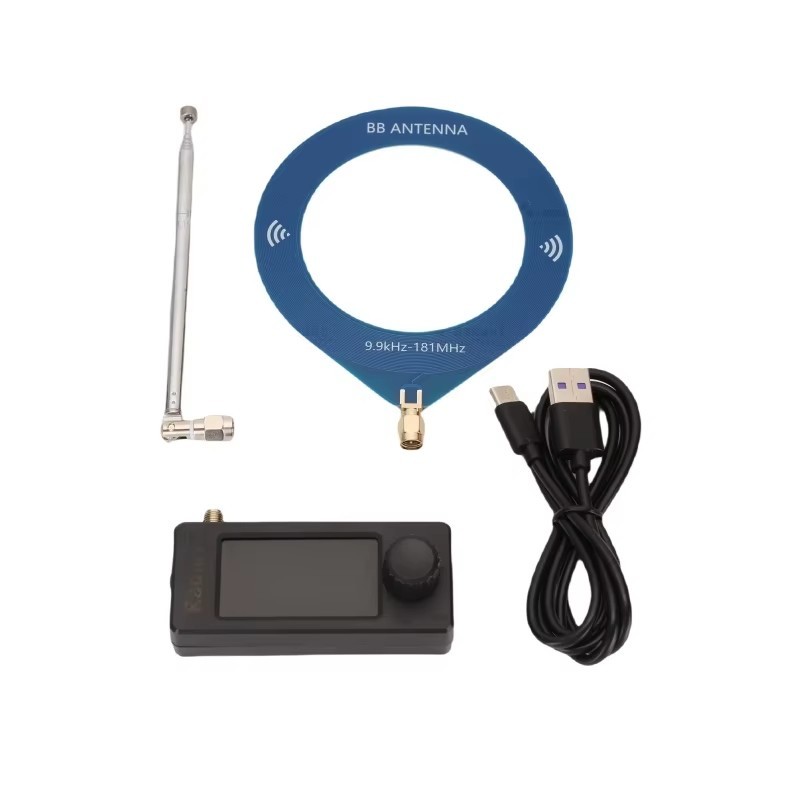

Package contents
1 x Radio
1 x Ring antenna
1 x Whip antenna
1 x USB cable
